HST Remote Temperature Readout Cable
Connects to Most Digital Multimeters for On-the-Pole Temperature Readings
HST Remote Temperature Readout Cable
Connects to Most Digital Multimeters for On-the-Pole Temperature Readings
- Standard banana plug spacing for multimeter compatibility
- Use with HST Extension Cable for total reach of 27.5' (8.3 m)
- Rugged design with UL-recognized connectors
- Built to withstand field testing environments
Description
Designed for Accurate Remote Monitoring
The HST Remote Temperature Readout Cable provides reliable connectivity between your HST Heat Detector Tester and standard multimeters for real-time temperature readings. With durable banana plugs and UL-recognized connectors, this cable is field-tested and built for accurate monitoring in demanding environments. Pair it with the HST Output Extension Cable to reach detectors mounted high above the ground.
Features & Benefits
- Double banana plug spacing: 0.75" (19 mm), fits most standard multimeters
- Banana plug diameter: 0.166" (4 mm)
- Use with HST Output Extension Cable for 27.5' (8.3 m) total reach
- Cable is RG58C/U – 0.195" diameter, 50-ohm impedance
- UL-recognized HST double pin nylon connector
- Enables remote temperature reading while tester remains elevated
- Compatible with most volt-ohm meters and digital multimeters
- High durability for repeated field use
- Compact and lightweight design
Pairs Well With
HST compatible extension poles
Compatible extension poles that allow the HST Heat Detector Tester to test detectors mounted 30 feet high.

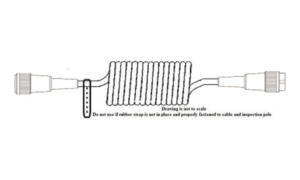

HST Output Extension Cable
The heavy duty cable extends the length of the HST Remote Temperature Readout Cable to 27.5 feet.
HST Large Carry Bag
Perfect for carrying, protecting, and storing HST Heat Detectors Tester heads, cables, and inspection poles.
Specifications
Plug Type
- Double banana plug (4 mm)
Spacing Between Plugs
- 0.75″ (19 mm)
Cable Type
- RG58C/U-0.195″ diameter – 50 ohms impedance
Connector Material
- UL-recognized black nylon
Voltage Rating
- Max 24VDC @ 2 amps
Durability
- 300+ cycles without mechanical or electrical failure
Operating Temp
- -55°C to +55°C (-67°F to +131°F)
Corrosion Resistance
-
300-hour salt spray rating
